Punch Grinders

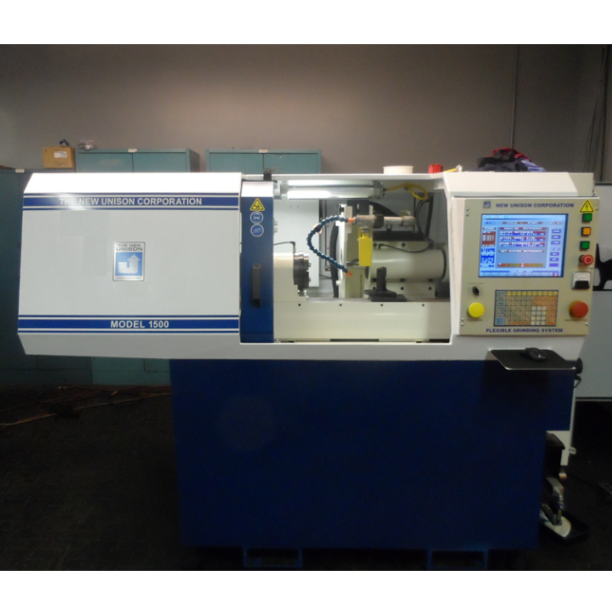

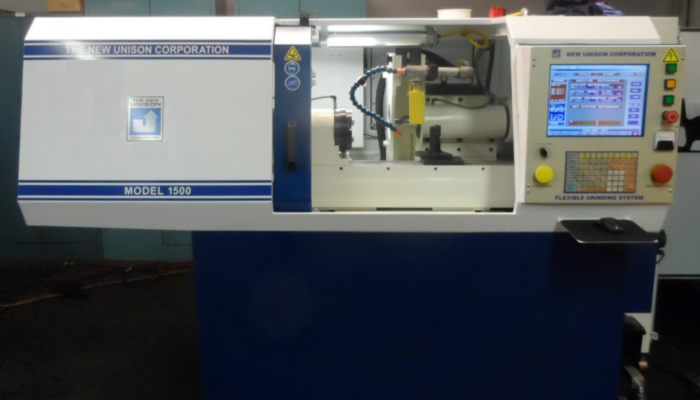

The Model 1500 is an extremely rigid production grinding system designed to grind both round, non-round, standard and non-standard OD shapes as well as contours and peel grinding.

The polymer cast base provides significant dampening properties to absorb vibration during grinding. This improved base increases accuracy during grinding as well as the surface finish on the parts. Polymer bases are less sentitive to temperature fluctuations due to a lower thermal expansion coefficient thus improving precision and increasiing productivity.

Additional features:

AC Digital Yaskawa Servomotors and Drive Amplifiers
Direct Drive Workhead
20 Bit High Resolution Encoder
Frictionless Linear Rails
New Streamline design requires less floor space

The Model 1500 is capable of meeting the most demanding grinding applications and is shipped with a complete library of software for grinding standard punch shapes. The improvements incorporated in the new Model 1500 result in remarkable faster cycle times from part-to-part and greater reliability.

Click here for brochure with specifications.

For additional information regarding the products of Unison, please contact our Marketing Department at (248) 544-9500; fax us at (248) 544-7646 or e-mail us at sales@unisoncorp.com


Model 1500 - Video

Model 1500 - Image Gallery

Profile Peel Grinders


The Model 3000 is a Dual Spindle five axis CNC Profile Peel Grinder with a built-in three axis pick-n-place Loader/Unloader for continuously grinding parts for long periods of unattended operation. This grinder can be equipped with a ninth axis for controlling an optional on-board electric wheel dressing system to automatically dress the finishing wheel. This machine was designed for grinding cylindrical and tapered parts with multiple steps and is perfectly suited to grind complex forms into medical and dental parts as well as to prepare tool blanks for endmills, reamers, drills, burrs, etc. with precise geometrical dimensions.

Additional features:

AC Digital Yaskawa Servomotors and Drive Amplifiers
Direct Drive 26.8 HP (20kW) Roughing Spindle
Direct Drive 6.7HP Finishing Spindle
W25 Schaublin Workholding System
Built-in 3-Dimensional Part Predictor

.

Click here for brochure with specifications.

For additional information regarding the products of Unison, please contact our Marketing Department at (248) 544-9500; fax us at (248) 544-7646 or e-mail us at sales@unisoncorp.com
