Profile Peel Grinders

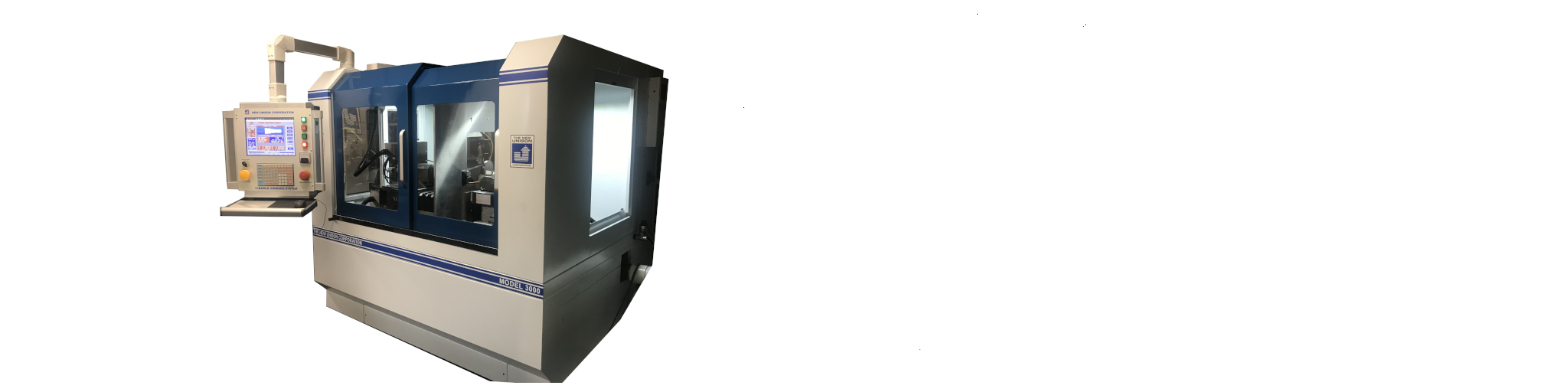

The Model 3000 is a Dual Spindle five axis CNC Profile Peel Grinder with a built-in three axis pick-n-place Loader/Unloader for continuously grinding parts for long periods of unattended operation. This grinder can be equipped with a ninth axis for controlling an optional on-board electric wheel dressing system to automatically dress the finishing wheel. This machine was designed for grinding cylindrical and tapered parts with multiple steps and is perfectly suited to grind complex forms into medical and dental parts as well as to prepare tool blanks for endmills, reamers, drills, burrs, etc. with precise geometrical dimensions.

Additional features:

AC Digital Yaskawa Servomotors and Drive Amplifiers
Direct Drive 26.8 HP (20kW) Roughing Spindle
Direct Drive 6.7HP Finishing Spindle
W25 Schaublin Workholding System
Built-in 3-Dimensional Part Predictor

.

Click here for brochure with specifications.
